NIKROTHAL 80 PLUS 다운로드

NIKROTHAL 80 PLUS


To obtain resistivity at working temperature, multiply by factor CT in following table.

NIKROTHAL 80
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.01 1.02 1.03 1.04 1.04 1.04 1.04 1.04 1.04 1.04 1.04 1.05 1.06

NIKROTHAL 80
W × T
㎜		 Resistance
Ω / m 20 ℃		 Surface area
㎠ / m		 Weight
g / m		 ㎠ / Ω
20℃
40 × 3.0 0.00908 860 996 94700
2.5 0.0109 850 830 78000
2.0 0.0136 840 664 61700
35 × 3.0 0.0104 760 872 73200
2.5 0.0125 750 726 60200
2.0 0.0156 740 581 47500
1.8 0.0173 736 523 42500
30 × 3.0 0.0121 660 747 54500
2.5 0.0145 650 623 44700
2.0 0.0182 640 498 35200
1.8 0.0202 636 448 31500
1.5 0.0242 630 374 26000
25 × 3.0 0.0145 560 623 38500
2.5 0.0174 550 519 31500
2.0 0.0218 540 415 24800
1.8 0.0242 536 374 22100
1.5 0.0291 530 311 18200
20 × 2.5 0.0218 450 415 20600
2.0 0.0273 440 332 16100
1.8 0.0303 436 299 14400
1.5 0.0363 430 249 11800
1.2 0.0454 424 199 9340
1.0 0.0545 420 166 7710
18 × 2.0 0.0303 400 299 13200
1.8 0.0336 396 269 11800
1.5 0.0404 390 224 9660
1.2 0.0505 384 179 7610
1.0 0.0606 380 149 6280
15 × 2.0 0.0363 340 249 9360
1.8 0.0404 336 224 8320
1.5 0.0484 330 187 6810
1.2 0.0606 324 149 5350
1.0 0.0727 320 125 4400
12 × 1.8 0.0505 276 179 5470
1.5 0.0606 270 149 4460
1.2 0.0757 264 120 3490
1.0 0.0908 260 99.6 2860
10 × 1.5 0.0727 230 125 3170
1.2 0.0908 224 99.6 2470
1.0 0.109 220 83.0 2020
8 × 1.5 0.0908 190 99.6 2090
1.2 0.114 184 79.7 1620
1.0 0.136 180 66.4 1320
7 × 1.2 0.130 164 69.7 1260
1.0 0.156 160 58.1 1030
6 × 1.2 0.151 144 59.8 951
1.0 0.182 140 49.8 771
5 × 1.2 0.182 124 49.8 683
1.0 0.218 120 41.5 550

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.



NIKROTHAL 80 PLUS


To obtain resistivity at working temperature, multiply by factor CT in following table.

NIKROTHAL 80
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.01 1.02 1.03 1.04 1.05 1.04 1.04 1.04 1.04 1.05 1.06 1.07

NIKROTHAL 80
Diameter
mm		 Resistance
Ω / m 20 ℃		 ㎠ / Ω
20℃		 Weight
g / m		 Surface area
㎠ / m		 Cross sectional
area ㎟		 Diameter
mm
8.0 0.0217 11600 417 251 50.3 8.0
7.5 0.0247 9550 367 236 44.2 7.5
7.0 0.0283 7760 319 220 38.5 7.0
6.5 0.0328 6220 275 204 33.2 6.5
6.0 0.386 4890 235 188 28.3 6.0
5.5 0.0459 3770 197 173 23.8 5.5
5.0 0.0555 2830 163 157 19.6 5.0
4.75 0.0615 2430 147 149 17.7 4.75
4.5 0.0685 2060 132 141 15.9 4.5
4.25 0.0768 1740 118 134 14.2 4.25
4.0 0.0867 1450 104 126 12.6 4.0
3.75 0.0987 1190 91.7 118 11.0 3.75
3.5 0.113 971 79.9 110 9.62 3.5
3.25 0.131 777 68.9 102 8.30 3.25
3.0 0.154 611 58.7 94.2 7.07 3.0
2.8 0.177 497 51.1 88.0 6.16 2.8
2.5 0.222 354 40.7 78.5 4.91 2.5
2.25 0.274 258 33.0 70.7 3.98 2.25
2.0 0.347 181 26.1 62.8 3.14 2.0
1.8 0.428 132 21.1 56.5 2.54 1.8
1.7 0.480 111 18.8 53.4 2.27 1.7
1.6 0.542 92.7 16.7 50.3 2.01 1.6
1.5 0.617 76.4 14.7 47.1 1.77 1.5
1.4 0.708 62.1 12.8 44.0 1.54 1.4
1.3 0.821 49.7 11.0 40.8 1.33 1.3
1.2 0.964 39.1 19.39 37.7 1.13 1.2
1.1 1.15 30.1 7.89 34.6 0.950 1.1
1.0 1.39 22.6 6.52 31.4 0.785 1.0

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.

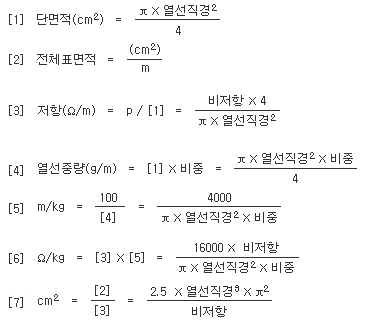

와이어 계산

와이어 계산

스트립 계산
열선의 종류 APM&A-1 AF D Ni80
비저항 1.45 Ω 1.39 Ω 1.35 Ω 1.05 Ω
비 중 7.10 7.15 7.25 8.30

스트립 계산
