KANTHAL A-1 다운로드

KANTHAL


To obtain resistivity at working temperature,multiply by factor CT in following table.

KANTHAL A-1
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.00 1.00 1.00 1.01 1.02 1.02 1.03 1.03 1.04 1.04 1.04 1.04 1.05

KANTHAL A-1
W × T
㎜		 Resistance
Ω / m 20 ℃		 Surface area
㎠ / m		 Weight
g / m		 ㎠ / Ω
20℃
40 × 3.0 0.0121 860 852 71200
2.8 0.0129 856 795 66100
2.5 0.0145 850 710 58600
2.0 0.0181 840 568 46300
1.8 0.0201 836 511 41500
1.5 0.0242 830 426 34300
35 × 3.0 0.0138 760 746 55000
2.8 0.0148 756 696 51100
2.5 0.0166 750 621 45300
2.0 0.0207 740 497 35700
1.8 0.0230 736 447 32000
1.5 0.0276 730 373 26400
1.2 0.0345 724 298 21000
30 × 3.0 0.0161 660 639 41000
2.8 0.0173 656 596 38000
2.5 0.0193 650 533 33600
2.0 0.0242 640 426 26500
1.8 0.0269 636 383 23700
1.5 0.0322 630 320 19600
1.2 0.0403 624 256 15500
25 × 3.0 0.0193 560 533 29000
2.8 0.0207 556 497 26800
2.5 0.0232 550 444 23700
2.0 0.0290 540 355 18600
1.8 0.0322 536 320 16600
1.5 0.0387 530 266 13700
1.2 0.0483 524 213 10800
1.0 0.0580 520 178 8970

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL

To obtain resistivity at working temperature, multiply by factor CT in following table.

KANTHAL A-1
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.00 1.00 1.00 1.01 1.02 1.02 1.03 1.03 1.04 1.04 1.04 1.04 1.05

KANTHAL A-1
Diameter
mm		 Resistance
Ω / m 20 ℃		 ㎠ / Ω
20℃		 Weight
g / m		 Surface area
㎠ / m		 Cross sectional
area ㎟		 Diameter
mm
12.0 0.0128 29400 803 377 113 12.0
10.0 0.0185 17000 558 314 78.5 10.0
9.5 0.0205 14600 503 298 70.9 9.5
8.25 0.0271 9560 380 259 53.5 8.25
8.0 0.288 8710 357 251 50.3 8.0
7.5 0.0328 7180 314 236 44.2 7.5
7.0 0.0377 5840 273 220 38.5 7.0
6.5 0.0437 4670 236 204 33.2 6.5
6.0 0.0513 3680 201 188 28.3 6.0
5.5 0.0610 2830 169 173 23.8 5.5
5.0 0.0738 2130 139 157 19.6 5.0
4.75 0.0818 1820 126 149 17.7 4.75
4.5 0.0912 1550 113 141 15.9 4.5
4.25 0.102 1310 101 134 14.2 4.25
4.0 0.115 1090 89.2 126 12.6 4.0
3.75 0.131 897 78.4 118 11.0 3.75
3.5 0.151 730 68.3 110 9.62 3.5
3.25 0.175 584 58.9 102 8.30 3.25
3.0 0.205 459 50.2 94.2 7.07 3.0
2.75 0.244 354 42.2 86.4 5.94 2.75
2.5 0.295 266 34.9 78.5 4.91 2.5
2.25 0.365 194 28.2 70.7 3.98 2.25
2.0 0.462 136 22.3 62.8 3.14 2.0
1.8 0.570 99.2 18.1 56.5 2.54 1.8
1.7 0.639 83.6 16.1 53.4 2.27 1.7
1.6 0.721 69.7 14.3 50.3 2.01 1.6
1.5 0.821 57.4 12.5 47.1 1.77 1.5
1.4 0.942 46.7 10.9 44.0 1.54 1.4
1.3 1.09 37.4 9.42 40.8 1.33 1.3
1.2 1.28 29.4 8.03 37.7 1.13 1.2
1.1 1.53 22.6 6.75 34.6 0.950 1.1
1.0 1.85 17.0 5.58 31.4 0.785 1.0

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL AF 다운로드

KANTHAL


To obtain resistivity at working temperature, multiply by factor CT in following table.

KANTHAL AF
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.01 1.01 1.02 1.03 1.04 1.04 1.05 1.05 1.06 1.06 1.06 1.06 1.07

KANTHAL A-1
W × T
㎜ 		Resistance
Ω / m 20 ℃		 Surface area
㎠ / m		 Weight
g / m		 ㎠ / Ω
20℃
40 × 3.0 0.0116 860 858 74200
2.5 0.0139 850 715 61200
2.0 0.0174 840 572 48300
1.8 0.0193 836 515 43300
1.5 0.0232 830 429 35800
35 × 3.0 0.0132 760 751 57400
2.5 0.0159 750 626 47200
2.0 0.0199 740 501 37300
1.8 0.0221 736 450 33400
1.5 0.0265 730 375 27600
1.2 0.0331 724 300 21900
30 × 3.0 0.0154 660 644 42700
2.5 0.0185 650 536 35100
2.0 0.0232 640 429 27600
1.8 0.0257 636 386 24700
1.5 0.0309 630 322 20400
1.2 0.0386 624 257 16200
25 × 3.0 0.0185 560 536 30200
2.5 0.0222 550 447 24700
2.0 0.0278 540 358 19400
1.8 0.0309 536 322 17400
1.5 0.0371 530 268 14300
1.2 0.0463 524 215 11300
1.0 0.0556 520 179 9350
20 × 2.5 0.0278 450 358 16200
2.0 0.0348 440 286 12700
1.8 0.0386 436 257 11300
1.5 0.0463 430 215 9280
1.2 0.0579 424 172 7320
1.0 0.0695 420 143 6040
18 × 2.0 0.0386 400 257 10400
1.8 0.0429 396 232 9230
1.5 0.0515 390 193 7580
1.2 0.0644 384 154 5970
1.0 0.0772 380 129 4920
15 × 2.0 0.0463 340 215 7340
1.8 0.0515 336 193 6530
1.5 0.0618 330 161 5340
1.2 0.0772 324 129 4200
1.0 0.0927 320 107 3450
12 × 1.8 0.0644 276 154 4290
1.5 0.0772 270 129 3500
1.2 0.0965 264 103 2730
1.0 0.116 260 85.8 2240
10 × 1.5 0.0927 230 107 2480
1.2 0.116 224 85.8 1930
1.0 0.139 220 71.5 1580
8 × 1.5 0.166 190 85.8 1640
1.2 0.145 184 68.6 1270
1.0 0.174 180 57.2 1040
7 × 1.2 0.165 164 60.1 991
1.0 0.199 160 50.1 806
6 × 1.2 0.193 144 51.5 746
1.0 0.232 140 42.9 604
5 × 1.2 0.232 124 42.9 535
1.0 0.278 120 35.8 432

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL


To obtain resistivity at working temperature, multiply by factor CT in following table.

KANTHAL AF
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.01 1.01 1.02 1.03 1.04 1.04 1.05 1.05 1.06 1.06 1.06 1.06 1.07

KANTHAL A-1
Diameter
mm		 Resistance
Ω / m 20 ℃		 ㎠ / Ω
20℃		 Weight
g / m		 Surface area
㎠ / m		 Cross sectional
area ㎟		 Diameter
mm
12.0 0.0123 30700 809 377 113 12.0
10.0 0.0177 17800 562 314 78.5 10.0
9.5 0.0196 15200 507 298 70.9 9.5
8.0 0.0277 9090 359 251 50.3 8.0
7.5 0.0315 7490 316 236 44.2 7.5
7.0 0.0361 6090 275 220 38.5 7.0
6.5 0.0419 4870 237 204 33.2 6.5
6.0 0.0492 3830 202 188 28.3 6.0
5.5 0.0585 2950 170 173 23.8 5.5
5.0 0.0708 2220 140 157 19.6 5.0
4.75 0.0784 1900 127 149 17.7 4.75
4.5 0.0874 1620 114 141 15.9 4.5
4.25 0.0980 1360 101 134 14.2 4.25
4.0 0.111 1140 89.8 126 12.6 4.0
3.75 0.126 936 79.0 118 11.0 3.75
3.5 0.144 761 768.8 110 9.62 3.5
3.25 0.168 609 59.3 102 8.30 3.25
3.0 0.197 479 50.5 94.2 7.07 3.0
2.8 0.226 390 44.0 88.0 6.16 2.8
2.5 0.283 277 35.1 78.5 4.91 2.5
2.25 0.350 202 28.4 70.7 3.98 2.25
2.0 0.442 142 22.5 62.8 3.14 2.0
1.9 0.490 122 20.3 59.7 2.84 1.9
1.8 0.546 104 18.2 56.5 2.54 1.8
1.7 0.612 87.2 16.2 53.4 2.27 1.7
1.6 0.691 72.7 14.4 50.3 2.01 1.6
1.5 0.787 59.9 12.6 47.1 1.77 1.5
1.4 0.903 48.7 11.0 44.0 1.54 1.4
1.3 1.05 39.0 9.49 40.8 1.33 1.3
1.2 1.23 30.7 8.09 37.7 1.13 1.2
1.1 1.46 23.6 6.79 34.6 0.950 1.1
1.0 1.77 17.8 5.62 31.4 0.785 1.0

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL D 다운로드

KANTHAL


To obtain resistivity at working temperature, multiply by factor CT in following table.

KANTHAL D
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.01 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.07 1.07 1.08 1.08

KANTHAL D
W × T
㎜ 		Resistance
Ω / m 20 ℃		 Surface area
㎠ / m		 Weight
g / m		 ㎠ / Ω
20℃
40 × 3.0 0.0113 860 870 76400
2.5 0.0135 850 725 63000
2.0 0.0169 840 580 49800
35 × 3.0 0.0129 760 761 59100
2.5 0.0154 750 634 48600
2.0 0.0193 740 508 38400
1.8 0.0214 736 457 34300
1.5 0.0257 730 381 28400
30 × 3.0 0.0150 660 653 44000
2.5 0.0180 650 544 36100
2.0 0.0225 640 435 28400
1.8 0.0250 636 392 25400
1.5 0.0300 630 326 21000
25 × 3.0 0.0180 560 544 31100
2.5 0.0216 550 453 25500
2.0 0.0270 540 363 20000
1.8 0.0300 536 326 17900
1.5 0.0360 530 272 14700
1.2 0.0450 524 218 11600
1.0 0.0540 520 181 9630
20 × 2.5 0.0270 450 363 16700
2.0 0.0338 440 290 13000
1.8 0.0375 436 261 11600
1.5 0.0450 430 218 9560
1.2 0.0563 424 174 7540
1.0 0.0675 420 145 6220
18 × 2.0 0.0375 400 261 10700
1.8 0.0417 396 235 9500
1.5 0.0500 390 196 7800
1.2 0.0625 384 157 6140
1.0 0.0750 380 131 5070
15 × 2.0 0.0450 340 218 7560
1.8 0.0500 336 196 6720
1.5 0.0600 330 163 5500
1.2 0.0750 324 131 4320
1.0 0.0900 320 109 3560
12 × 1.8 0.0625 276 157 4420
1.5 0.0750 270 131 3600
1.2 0.0938 264 104 2820
1.0 0.113 260 84 2310
10 × 1.5 0.0900 230 109 2560
1.2 0.113 224 87.0 1990
1.0 0.135 220 72.5 1630
8 × 1.5 0.0113 190 87.0 1690
1.2 0.141 184 69.6 1310
1.0 0.169 180 58.0 1070

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL


To obtain resistivity at working temperature, multiply by factor CT in following table.

KANTHAL D
℃ 20 100 200 300 400 500 600 700 800 900 1000 1100 1200 1300 1400
CT 1.00 1.00 1.01 1.01 1.02 1.03 1.04 1.05 1.06 1.07 1.07 1.07 1.08 1.08

KANTHAL A-1
Diameter
mm		 Resistance
Ω / m 20 ℃		 ㎠ / Ω
20℃		 Weight
g / m		 Surface area
㎠ / m		 Cross sectional
area ㎟		 Diameter
mm
8.0 0.0269 9360 364 251 50.3 8.0
6.0 0.0477 3950 205 188 28.3 6.0
5.5 0.0568 3040 172 173 23.8 5.5
5.0 0.0688 2280 142 157 19.6 5.0
4.75 0.0762 1960 128 149 17.7 4.75
4.5 0.0849 1670 115 141 15.9 4.5
4.25 0.0952 1400 103 134 14.2 4.25
4.0 0.1070 1170 91.1 126 12.6 4.0
3.75 0.1220 964 80.1 118 11.0 3.75
3.5 0.1400 784 69.8 110 9.62 3.5
3.25 0.1630 627 60.1 102 8.30 3.25
3.0 0.1910 493 51.2 94.2 7.07 3.0
2.8 0.2190 401 44.6 88.0 6.16 2.8
2.5 0.275 286 35.6 78.5 4.91 2.5
2.25 0.340 208 28.8 70.7 3.98 2.25
2.0 0.430 146 22.8 62.8 3.14 2.0
1.8 0.531 107 18.4 56.5 2.54 1.8
1.7 0.595 89.8 16.5 53.4 2.27 1.7
1.6 0.671 74.9 14.6 50.3 2.01 1.6
1.5 0.764 61.7 12.8 47.1 1.77 1.5
1.4 0.877 50.2 11.2 44.0 1.54 1.4
1.3 1.02 40.2 9.6 40.8 1.33 1.3
1.2 1.19 31.6 8.2 37.7 1.13 1.2
1.1 1.42 24.3 6.9 34.6 0.950 1.1
1.0 1.72 18.3 5.7 31.4 0.785 1.0

※ Regarding standard stock items,please contact your local Kanthal subsidiary/ repesentative or Kanthal, Sweden.


KANTHAL SUPER 다운로드

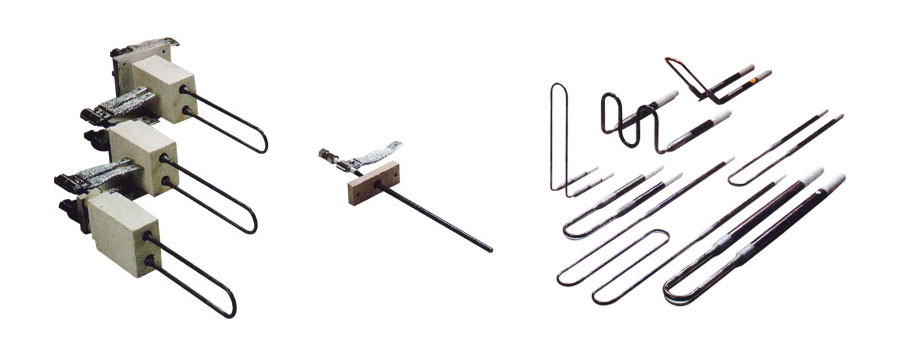

칸탈-슈퍼는 MO Si2 재질의 초고온 발열체이며 기계적 충격에 약한 단점이 있으나 파워밀도가 굉장히 높고 Ct 상승률이 높아
고온 급상승, 금냉 사용에 일차적으로 선택될 수 있습니다. 직경은 3~12mm까지 생산되며 길이는 직경 별로 다양하게 생산됩니다.
분위기 온도는 1300℃~1750℃ 가능하며 물리적, 화학적, 전기적충격이 없을 경우 반영구적 사용이 가능합니다.


열선종류 Kanthal - Super 1700 Kanthal - Super 1800 Kanthal - Super 1900
사용범위 1600 ℃ 1700 ℃ 1750 ℃

칸탈슈퍼 제품 이미지

각종 실험 및 산업용 전기로에 전용되어 1850℃ 까지 사용 가능


칸탈슈퍼
인장강도 1550 ℃ 100 Mpa ± 25 % 벤딩 강도 20℃ Kanthal - Super 1900
압축강도 20 ℃ 1400 ~ 1500 Mpa 입자 경도 KIC ℃ 3 ~ 4 Mpm1/2
경도,HV,20 ℃ 9Gpa 밀도, KS1700/KS1800 5.6 g/㎤
밀도,KS1900 6.5 g/㎤ 가공성 < 1%
열의 전도율 20 ~ 600 ℃                 30W m-1K-1               60 ~ 1200 ℃                 15W m-1K-1
선팽창계수 7 - 8 · 10-6K-1 비열, 20 ℃ 0.42 Kj Kg-1K-1
복사율 0.70 ~ 0.80

SUPERTHAL 다운로드

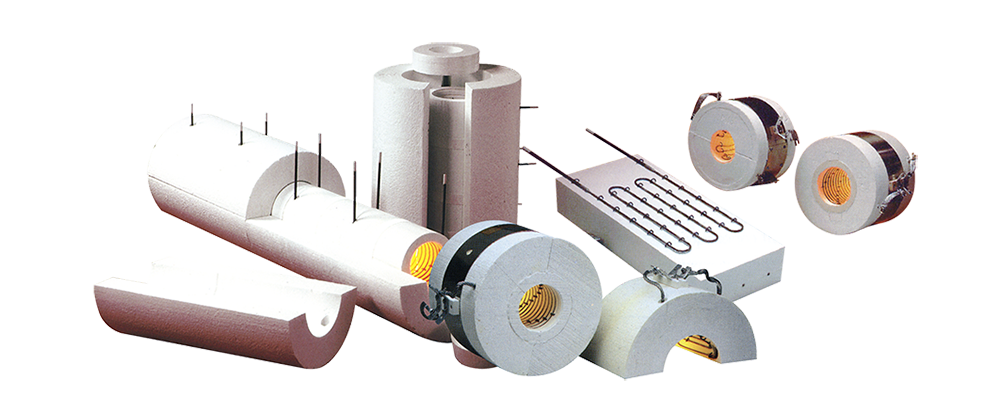

칸탈-슈퍼응용제품(Superthal)은 칸탈 슈퍼 발열체와 파이버의 결합으로 만들어진 것으로 최고 사용온도 1600℃ 까지 가능하며,
각종 실험 및 물성 테스트등에 사용됩니다.

슈퍼탈 제품 이미지

칸탈-슈퍼 발열체와 단열재간의 일체형 모듈 히터 -1650℃


슈퍼탈
MoSi2 종류 1700 1800 1900
분위기 ℃ ℃ ℃
공기 1700 1800 1850
질소 1600 1700 1800
알곤, 헬륨 1600 1700 1800
건조수소, 이슬점 -80℃ 1150 1150 1150
습한수소, 이슬점  20℃ 1450 1450 1450
Endogas 1400 1450 1450
암모니아 분해가스 1400 1400 1400

APM TUBE 다운로드

칸탈 APM 열선 재질로 사용한 튜브이고, 고온 1300 ℃에서 사용되며 알루미나 보호막이 (AL2, O2) 형성되며
히터를 보호하는데 훨씬 우수합니다.


APM TUBE

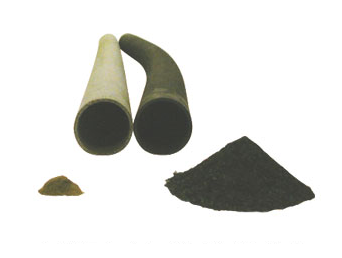

APM Extruded radiating tube APM Tube와 Fe-35Ni-25Cr Tube를 1100℃에서 2300시간 가열실험 결과
APM Extruded radiating tubes APM Tube와 Fe-35Ni-25Cr Tube를
1100℃에서 2300시간 가열실험 결과
APM TUBE

OD
(mm)

I D
(mm)

Wall
Thickness
(mm)

Weightl
APM
(kg/m)

198.00

189.00

9.00

37.90

178.00

170.00

8.00

30.30

164.00

158.00

6.00

21.20

154.00

148.00

6.00

19.80

146.00

140.00

6.00

18.70

128.00

122.50

5.50

15.00

115.00

109.50

5.50

13.40

109.00

104.00

5.00

11.60

100.00

95.00

5.00

10.60

89.00

83.50

5.50

10.20


OD
(mm)

I D
(mm)

Wall
Thickness
(mm)

Weightl
APM
(kg/m)

83.00

78.00

5.00

8.70

75.00

70.50

4.50

7.08

64.00

60.00

4.00

5.35

60.33

56.42

3.91

4.92

50.80

44.45

6.35

6.30

40.00

37.00

3.00

2.48

33.70

27.70

6.00

3.71

33.40

30.02

3.38

2.26

26.67

23.80

2.87

1.52
